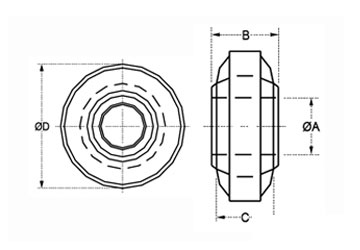

RADHA KRISHNA AGRIPARTS Part No. |
Description |
Cat. |
Pin Hole ØA (Inches) |
Length Thru Bore B (Inches) |
Sleeve Width C (Inches) |
Sleeve O.D. ØD (Inches) |
Package Qty. |
Bulk Weight (lbs.) |
| RKBS-1125 | Standard duty, black oxide | 1 | 3/4n | 1-5/8n | 3/4n | 2n | 2 | 0.6 |
| RKBS-1126 | Standard duty, black oxide | 2 | 1n | 1-3/4n | 7/8n | 2-3/8n | 2 | 0.8 |
| RKBS-1127 | Heavy duty, black oxide | 2 | 1n | 1-3/4n | 1-3/16n | 2-3/4n | 2 | 1.8 |
| RKBS-1128 | Standard duty, black oxide | 3 | 1-1/4n | 1-3/4n | 1-9/32n | 3-1/8n | 2 | 1.8 |
| RKBS-1129 | Heavy duty, black oxide | 1 | 3/4n | 1-5/8n | 7/8n | 2-1/8n | 2 | 0.7 |
| RKBS-1130 | tandard duty, plated | 2 | 1n | 1-3/4n | 7/8n | 2-3/8n | 2 | 0.8 |
| RKBS-1131 | Heavy duty, plated | 1 | 3/4n | 1-5/8n | 7/8n | 2-1/8n | 2 | 0.7 |
| RKBS-1132 | Standard duty, plated | 1 | 3/4n | 1-5/8n | 3/4n | 2n | 2 | 0.6 |
| RKBS-1133 | Extra heavy duty, black oxide | 1 | 3/4n | 1-3/8n | 7/8n | 2-3/8n | 2 | 0.9 |
| RKBS-1134 | Standard duty, black oxide | 2 | 1n | 1-1/4n | 7/8n | 2-3/8n | 2 | 0.8 |
| RKBS-1135 | Standard duty, plated | 2 | 1n | 1-1/4n | 7/8n | 2-3/8n | 2 | 0.8 |
| RKBS-1136 | Standard duty, black oxide | 1 & 2 | 3/4n & 1n | 1-1/2n & 1-1/4n | 7/8n | 2-3/8n | 2 | 0.6 |
RADHA KRISHNA AGRIPARTS |
Description |
Cat. |
Pin Hole |
Length Thru Bore |
Sleeve Width |
Sleeve O.D. |
Weight |
| RKBS-1137 | Standard duty, black oxide | 0 | 5/8n | 1n | 3/4n | 2n | 0.6 |
| RKBS-1138 | Standard duty, black oxide | 1 | 7/8n | 1-3/8n | 7/8n | 2-3/8n | 0.9 |
| RKBS-1139 | Extra heavy duty, black oxide | 2 | 1-1/8n | 1-3/4n | 1-3/8n | 3-1/8n | 1.9 |
| RKBS-1140 | Standard duty, black oxide | 3 | 1-7/16n | 1-3/4n | 1-11/32n | 3-1/2n | 2.4 |
| RKBS-1141 | Standard duty, plated | 2 | 1-1/8n | 1-5/16n | 15/16n | 2-3/8n | 0.8 |
| RKBS-1142 | Standard duty, plated | 1 | 7/8n | 1-3/8n | 7/8n | 2-3/8n | 0.9 |
| RKBS-1143 | Standard duty, plated | 2 | 1-1/8n | 1-5/16n | 15/16n | 2-3/8n | 0.8 |
| RKBS-1144 | Heavy duty, black oxide | 1 & 2 | 7/8n & 1-1/8n | 1-3/4n both | 1-3/16n | 2-3/4n | 1.4 |
| RKBS-1145 | Heavy duty, plated | 1 & 2 | 7/8n & 1-1/8n | 1-3/4n both | 1-3/16” | 2-3/4” | 1.4 |
| RKBS-1146 | Extra heavy duty, black oxide | 1 & 2 | 7/8n & 1-1/8n | 1-3/4n both | 1-3/8n | 3-1/8n | 1.7 |
| RKBS-1147 | Heavy duty, plated | 2 | 1-1/8n | 1-3/4n | 1-1/4” | 2-3/4” | 1.6 |
| RKBS-1148 | Extra heavy duty, plated | 2 | 1-1/8n | 1-3/4n | 1-3/8n | 3-1/8n | 1.9 |
| RKBS-1149 | Standard duty, plated | 3 | 1-7/16” | 1-3/4n | 1-11/32” | 3-1/2” | 2.4 |
